These 2 images show the same manifold with and
without the valves installed. This block was
designed to split the auxiliary valve output in
Excavators and enable it to power 2 double acting
functions such as a thumb and blade or twist wrist,
or other special equipment while providing
continuous relief and anti-cavitation protection on
all outputs, as well as a 3rd option for either "float"
or "motor center" on each double acting circuit. The
auxiliary spool pilot is controlled either bang-bang
full stroke on/off or by electro-hydraulic
proportional pilot control with a joystick lever.
Please contact us if you would like to purchase one.
without the valves installed. This block was
designed to split the auxiliary valve output in
Excavators and enable it to power 2 double acting
functions such as a thumb and blade or twist wrist,
or other special equipment while providing
continuous relief and anti-cavitation protection on
all outputs, as well as a 3rd option for either "float"
or "motor center" on each double acting circuit. The
auxiliary spool pilot is controlled either bang-bang
full stroke on/off or by electro-hydraulic
proportional pilot control with a joystick lever.
Please contact us if you would like to purchase one.
This custom block
houses 4, 2 way
solenoid cartridge
valves for a coolant
distribution system
on CNC machine
tools. A Machine
tool distributor
installs these as a
value added
"dealer" option to
the machines they
sell.
houses 4, 2 way
solenoid cartridge
valves for a coolant
distribution system
on CNC machine
tools. A Machine
tool distributor
installs these as a
value added
"dealer" option to
the machines they
sell.

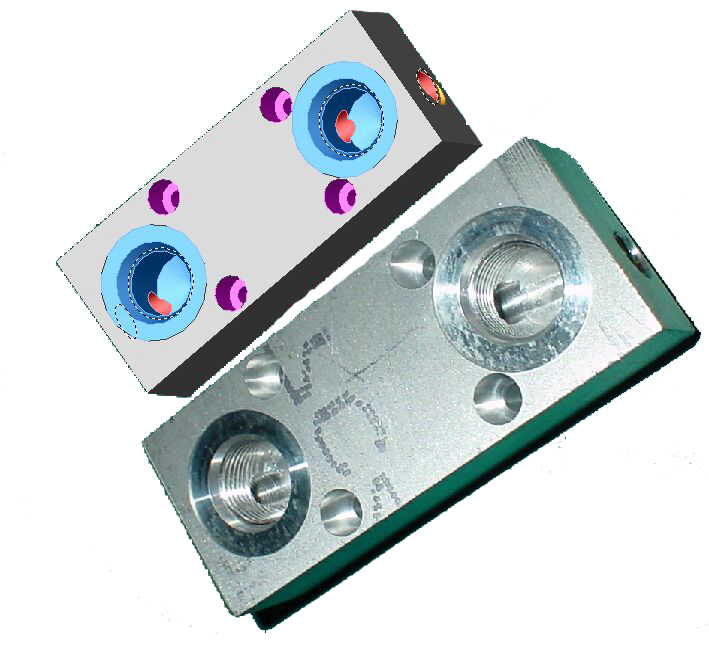

This is a simple
adapter used to aid
in a retrofit of
existing equipment
to expand its
capacity
adapter used to aid
in a retrofit of
existing equipment
to expand its
capacity

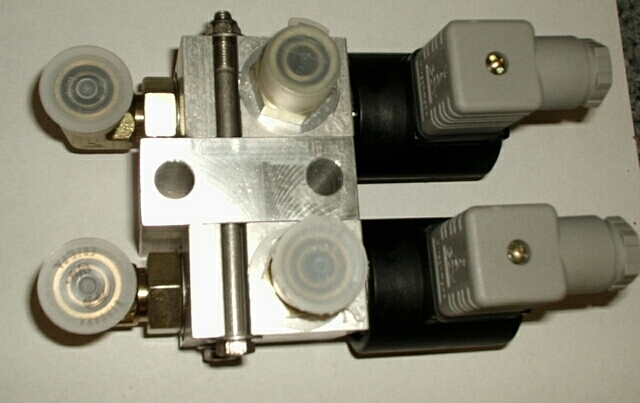

A simple valve
arrangement for providing
a blade float function on
excavators with blocked
center blade control
valves, thgis valves allows
the blade to be used for
traditional "backdragging"
operation.
arrangement for providing
a blade float function on
excavators with blocked
center blade control
valves, thgis valves allows
the blade to be used for
traditional "backdragging"
operation.

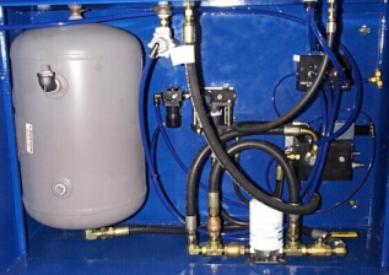

Below, air powered hydraulic system, air provides power for
mass oil flow and powers an intensifier pump for high
pressure (5000psi) operation)
mass oil flow and powers an intensifier pump for high
pressure (5000psi) operation)
Electro-hydraulic power unit, space
saving vertical design.
saving vertical design.

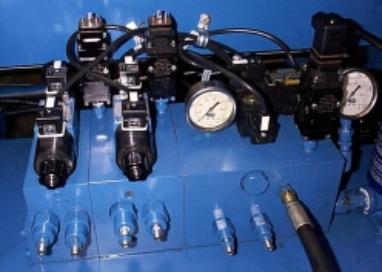

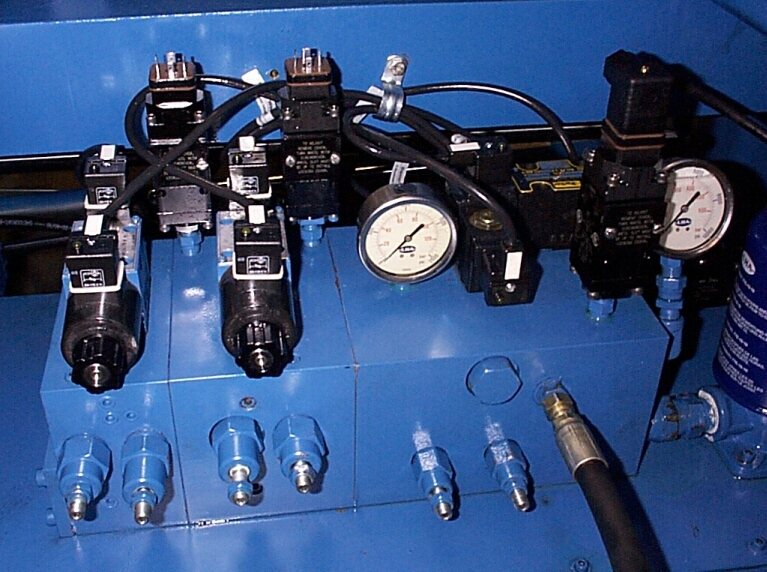

Above, a highly customized valve manifold horizontally stacking with all adjustments

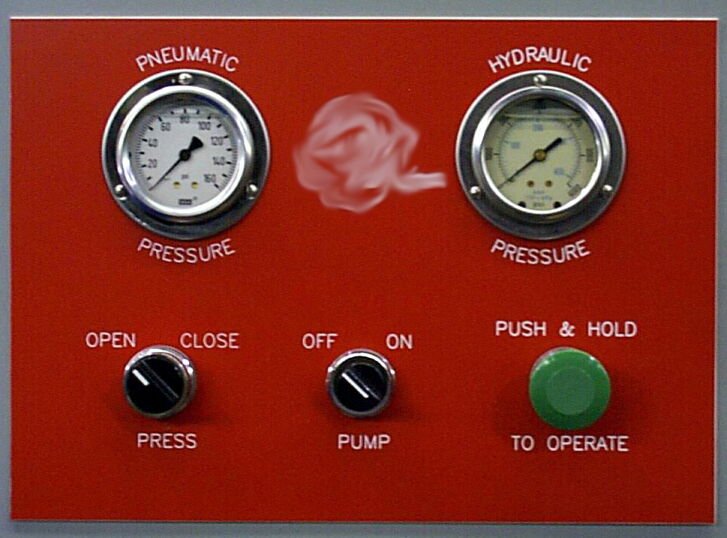

accessible from the front. Below, a pneumatic/hydraulic control panel, switches are
actually pneumaic valves controlling an air/oil system like that above & to the right.
accessible from the front. Below, a pneumatic/hydraulic control panel, switches are
actually pneumaic valves controlling an air/oil system like that above & to the right.
| Fox Prints 615 Harrison rd - Norway ME 04268 V 207-744-4028 F 207-743-8148 inquiries@fox-prints.com |
The custom block on the left
was developed to provide the
customer with a universal
valve manifold capable of
supporting a host of different
power units and output
options in a single stocked

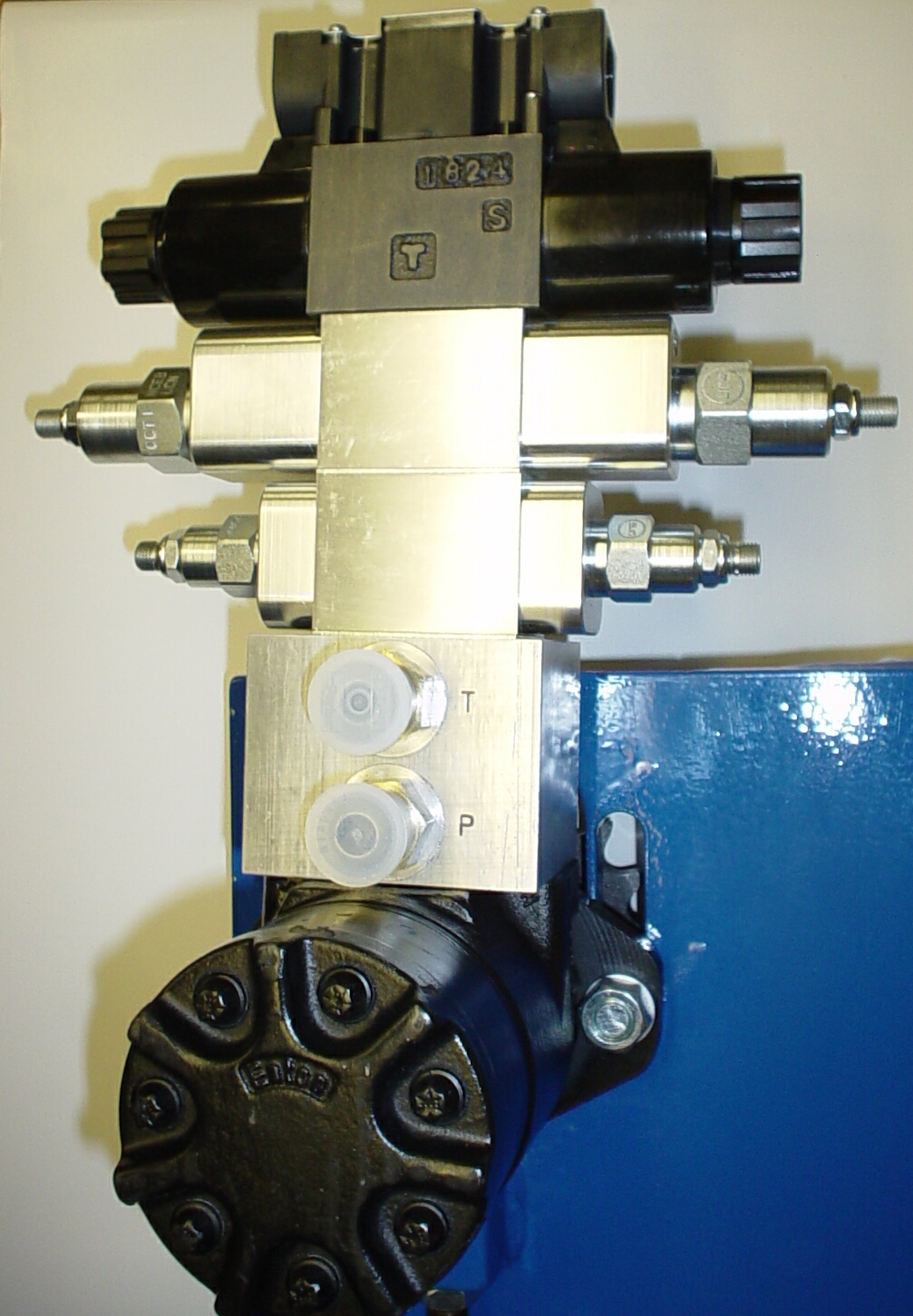

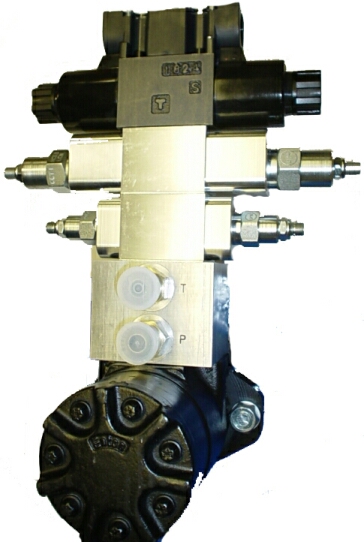

manifold. To the right a
